UL1533 单芯隔离线

■ 产品说明：
●导体使用单条或绞线，30~16AWG
●裸软铜或镀锡软铜线
●半硬PVC 绝缘，芯线类似UL 1061
●裸软铜或镀锡软铜线缠绕隔离
●单芯PVC 被套
●额定温度：80℃；额定电压：无规定
●可通过UL VW-1SC垂直耐燃测试
●参考标准：UL subject 758，UL 1581

■ 产品应用：
●用于录音，录音工作室，音响系统，电子电路

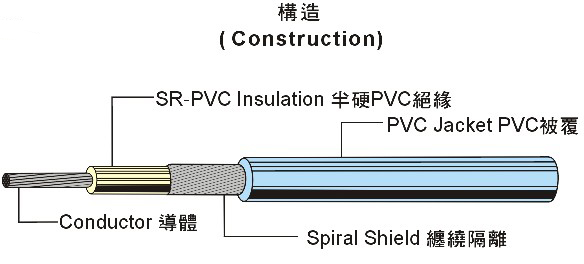

■ PRODUCT DESCRIPTION：
●Tinned or bare,stranded or solid copper conductor,30-16 AWG.
●Color-coded SR-PVC insulation,similar to UL 1061.
●Tinned or bare copper wire spiral shield.
●Color-coded PVC jacket single core.
●Rated temperature：80℃. Rated voltage not specified.
●Passes UL VW-1SC vertical flame test.
●Reference standard：UL subject 758，UL 1581.

■ APPLICATIONS：
●For use in recording studios,sound systems and electronic circuits.
