UL2562 Parallel Shield Wire 并排隔离线

■说明
● 导体使用绞线,30-16AWG裸软铜或镀锡软铜线
●PVC绝缘，芯线类似UL1007
●裸软铜或镀锡软铜线缠绕隔离
●PVC被覆
●额定温度：80 ℃；额定电压：300 volts
●可通过UL VW-1SC垂直耐燃测试
●参考标准：UL 758，UL1581

■应用
●用于视听设备，电子设备内部配线

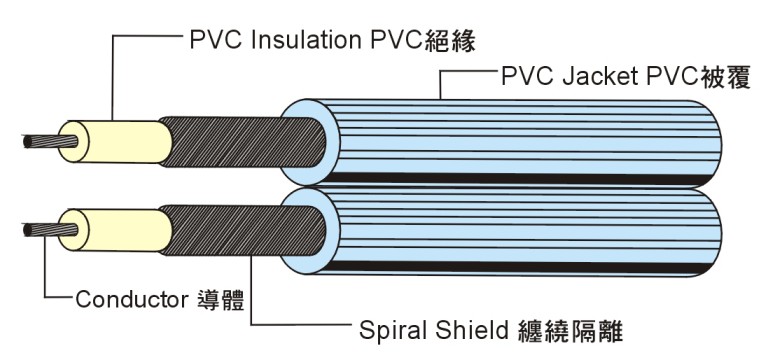

■PRODUCT DESCRIPTION
●Tinned or bare,stranded, or solid copper conductor, 30-16AWG
●Color-coded PVC insulation,similar to UL1007
●Tinned or bare copper wire spiral shield.
●PVC jacket
●Rated temperature：80℃;Rated voltage：300V
●Passes UL VW-1 and JQA -F-Mark flame test
●Reference standard：UL758,UL1581

■APPLICATION
●For use in internal wiring of audio or video equipment
