UL1061 Hook-Up Wire PVC 电子线

■说明：

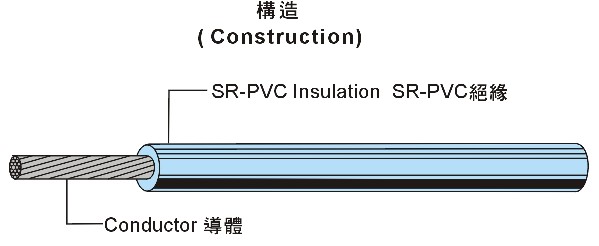

●导体使用单条或绞线，30-16AWG裸软铜或镀锡软铜线
●半硬PVC绝缘
●额定温度：80℃；额定电压：300volts
●可通过UL VW-1 垂直耐燃测试
●使用标准厚度，易剥，截断容易
●参考标准：UL 758，UL 1581

■应用：
●一般电子，电子及电器设备

■PRODUCT DESCRIPTION：
●Tinned or bare,stranded or solid copper conductor,30-16AWG.
●Color-coded SR-PVC insulation.
●Rated temperature:80℃. Rated voltage:300 volts.
●Passes UL VW-1 vertical flame test.
●Uniform thickness of wire to ensure easy stripping and cutting.
●Reference standard：UL subject 758，UL 1581.

■APPLICATIONS：
●Internal wiring of computers,office equipment and other
electronic and electrical equipment.
